Hinge Shower Door,Sink Hinge Shower Enclosure,Rectangular Shape Shower Cubicle,Stainless Steel Hinge Shower Enclosure Zhongshan Jianjie Sanitary Ware Co.,Ltd , https://www.janjieshowerdoor.com Hebei Zuoyou electronic superconducting solid-state relay adopts the world's latest SSR circuit design. It is a new type of electronic superconducting solid state relay with electronic components and relays that are innovatively designed based on traditional solid state relays.
Wide range of use: AC models, control voltage AC-DC 3-450V can directly use the start and stop buttons, need auxiliary power, can control the main circuit, DC models, control voltage 3-100V, can reasonably control the conversion time. Compared with traditional solid state relays, it has the advantages of small size, easy installation, low power consumption, no need for additional heat sinks, and long life.
The integrated installation technology design eliminates the need for heat sinks and makes the product more secure and reliable. It is more convenient for users to use the installation wiring. It is a suitable replacement replacement product for AC contactors.

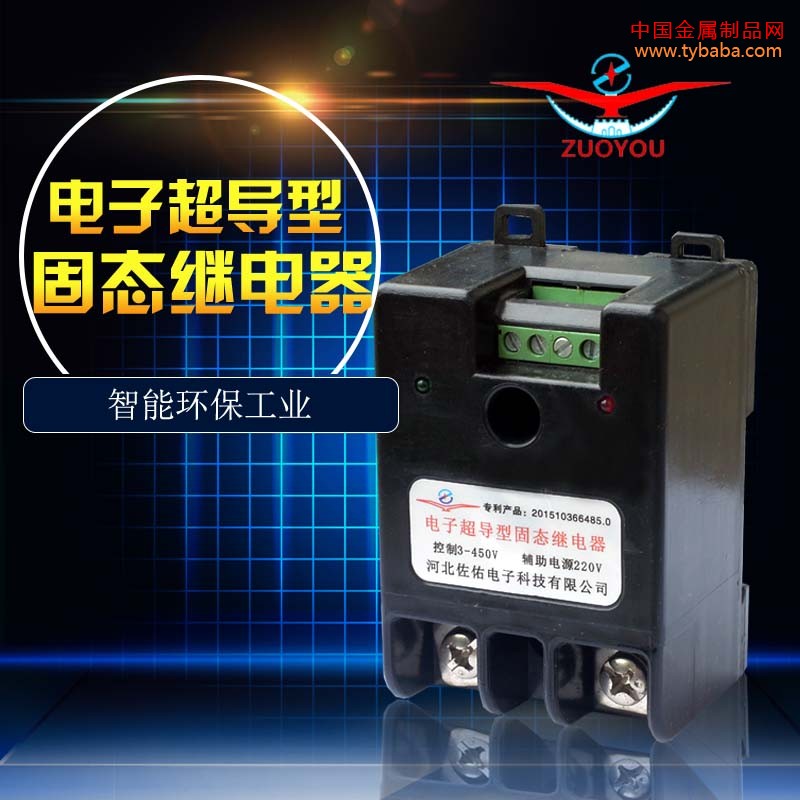

Widely used in electric furnace temperature control, control of machine tools , packaging machinery , printing machinery, rubber and plastic machinery, number of robots, charging piles, central air conditioning, medical, entertainment facilities and other industrial automation control areas. series ZY-JDI2601 Single Phase Superconducting Solid State Relay ZY-JDI2603 three-phase superconducting solid state relay Product Image

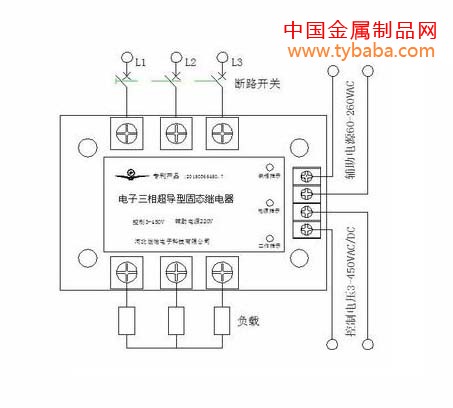

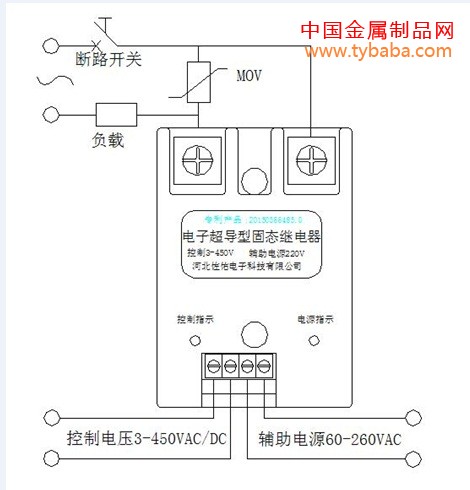

Input parameters Input voltage 3.1~450V AC.DC 3-450V Input Current 1.5mA 2mA Ensure shutdown voltage 1V AC.DC 1V Output parameters The output voltage 1-500V 1-380VAC Rated load current 70A basically no environmental impact 70A Maximum current drop <0.02Vrms 0.02V Shutdown time 1/2 cycle + 1ms 1/2 cycle Other parameters Maximum power loss <2.5W <5W Contact material Semiconductor + Silver Alloy Semiconductor + Silver Alloy Contact load current 70A 210A Contact switching voltage 0-380AC 0-450AC Operating temperature -40°C~+85°C -40°C~+85°C weight 220g 412±5g Wiring diagram
Features
